前幾篇我有提到WGAN在訓練過程中可以改善兩個神經網路loss很難調教的問題(很常判別器的loss下降，生成器的卻一直上升，或是情況相反)，因此我將在此篇裡使用WGAN的規則來修改神經網路的一些參數，條件如下：
Set Networks
The WGAN limits:
1.判別器最後一層去掉sigmoid
2.生成器和判別器的loss不取log
3.每次更新判別器的參數之後把它們的絕對值截斷到不超過一個固定常數c
4.不要用基於動量的優化算法（包括momentum和Adam），推薦RMSProp，SGD也行
讀取資料
import pandas as pd
import numpy as np
df = pd.read_csv('C:/Users/User/OneDrive - student.nsysu.edu.tw/Documents/dataset/creditcard.csv')繪製簡單的視覺化
盜刷與正常資料呈現不平衡的狀態，詳細資料介紹可看之前那篇文章：GAN Sampling Versus Other Sampling Method On Credit Card Fraud Detection Data(Link Source：https://reurl.cc/RdgDzz/)
from sklearn.model_selection import train_test_split
fraud = df[df['Class'].isin([1])]
normal = df[df['Class'].isin([0])]
train_nor, test_nor = train_test_split(normal, test_size = 0.5)
train_fra, test_fra = train_test_split(fraud, test_size = 0.5)
data_train = pd.concat([train_nor,train_fra], axis=0)
data_test = pd.concat([test_nor,test_fra], axis=0)
f_x = train_fra.iloc[:,0:30]%matplotlib inline
by_fraud = df.groupby('Class')
by_fraud.size().plot(kind = 'bar')<matplotlib.axes._subplots.AxesSubplot at 0x23373d19cc0>
print(data_train[data_train['Class'].isin([1])].shape,data_train[data_train['Class'].isin([0])].shape)(246, 31) (142157, 31)生成對抗網路
這次定義了oneclass的function讓他可在訓練網路裡呈現各epoch中的error值，這裡定義的error為：使用真實資料先生成一個one class svm，找出所有實際值在classfier score的上下限，並生成資料拿去通過同一個svm classfier，若其score不在真實值範圍則定義為error ，而生成器一次將生成真實樣本的數量，因此這裡我error rate就是sum(normal)/sum(errors)，並且想辦法讓gan的epoch往error rate低的方向收斂。
# import modules
%matplotlib inline
import os
import random
import keras
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from tqdm import tqdm_notebook as tqdm
from keras.models import Model
from keras.layers import Input, Reshape
from keras.layers.core import Dense, Activation, Dropout, Flatten
from keras.layers.normalization import BatchNormalization
from keras.layers.convolutional import UpSampling1D, Conv1D
from keras.layers.advanced_activations import LeakyReLU
from keras.optimizers import Adam, SGD
from keras.callbacks import TensorBoard
from sklearn.preprocessing import StandardScaler
# set parameters
dim = 30
num = 246
g_data = f_x
# Standard Scaler
ss = StandardScaler()
g_data = pd.DataFrame(ss.fit_transform(g_data))
# generator
def get_generative(G_in, dense_dim=200, out_dim= dim, lr=1e-3):
x = Dense(dense_dim)(G_in)
x = Activation('tanh')(x)
G_out = Dense(out_dim, activation='tanh')(x)
G = Model(G_in, G_out)
opt = keras.optimizers.RMSprop(lr=lr)#原先為SGD
G.compile(loss='binary_crossentropy', optimizer=opt)
return G, G_out
G_in = Input(shape=[10])
G, G_out = get_generative(G_in)
G.summary()
# discriminator
def get_discriminative(D_in, lr=1e-3, drate=.25, n_channels= dim, conv_sz=5, leak=.2):
x = Reshape((-1, 1))(D_in)
x = Conv1D(n_channels, conv_sz, activation='relu')(x)
x = Dropout(drate)(x)
x = Flatten()(x)
x = Dense(n_channels)(x)
D_out = Dense(2, activation='relu')(x)#sigmoid
D = Model(D_in, D_out)
dopt = keras.optimizers.RMSprop(lr=lr)#原先為Adam
D.compile(loss='binary_crossentropy', optimizer=dopt)
return D, D_out
D_in = Input(shape=[dim])
D, D_out = get_discriminative(D_in)
D.summary()
# set up gan
def set_trainability(model, trainable=False):
model.trainable = trainable
for layer in model.layers:
layer.trainable = trainable
def make_gan(GAN_in, G, D):
set_trainability(D, False)
x = G(GAN_in)
GAN_out = D(x)
GAN = Model(GAN_in, GAN_out)
GAN.compile(loss='binary_crossentropy', optimizer=G.optimizer)
return GAN, GAN_out
GAN_in = Input([10])
GAN, GAN_out = make_gan(GAN_in, G, D)
GAN.summary()
# pre train
def sample_data_and_gen(G, noise_dim=10, n_samples= num):
XT = np.array(g_data)
XN_noise = np.random.uniform(0, 1, size=[n_samples, noise_dim])
XN = G.predict(XN_noise)
X = np.concatenate((XT, XN))
y = np.zeros((2*n_samples, 2))
y[:n_samples, 1] = 1
y[n_samples:, 0] = 1
return X, y
def pretrain(G, D, noise_dim=10, n_samples = num, batch_size=32):
X, y = sample_data_and_gen(G, n_samples=n_samples, noise_dim=noise_dim)
set_trainability(D, True)
D.fit(X, y, epochs=1, batch_size=batch_size)
pretrain(G, D)
def sample_noise(G, noise_dim=10, n_samples=num):
X = np.random.uniform(0, 1, size=[n_samples, noise_dim])
y = np.zeros((n_samples, 2))
y[:, 1] = 1
return X, y
# one class detector
def oneclass(data,kernel = 'rbf',gamma = 'auto'):
num1 = int(len(data)/2)
num2 = int(len(data)+1)
from sklearn import svm
clf = svm.OneClassSVM(kernel=kernel, gamma=gamma).fit(data[0:num1])
origin = pd.DataFrame(clf.score_samples(data[0:num1]))
new = pd.DataFrame(clf.score_samples(data[num1:num2]))
occ = pd.concat([pd.DataFrame(new[0] < origin[0].min()),pd.DataFrame(new[0] > origin[0].max())], axis=1)
occ['ava'] = pd.DataFrame(occ.iloc[:,1:2] == occ.iloc[:,0:1])
err = sum(occ['ava'] == False)/len(occ['ava'])
return err
# training
def train(GAN, G, D, epochs=500, n_samples= num, noise_dim=10, batch_size=32, verbose=False, v_freq=dim,):
d_loss = []
g_loss = []
e_range = range(epochs)
if verbose:
e_range = tqdm(e_range)
for epoch in e_range:
X, y = sample_data_and_gen(G, n_samples=n_samples, noise_dim=noise_dim)
set_trainability(D, True)
d_loss.append(D.train_on_batch(X, y))
xx,yy = X,y
err = oneclass(xx)
print("The %d times epoch one class svm Error Rate=%f" %(epoch, err))
X, y = sample_noise(G, n_samples=n_samples, noise_dim=noise_dim)
set_trainability(D, False)
g_loss.append(GAN.train_on_batch(X, y))
if verbose and (epoch + 1) % v_freq == 0:
print("Epoch #{}: Generative Loss: {}, Discriminative Loss: {}".format(epoch + 1, g_loss[-1], d_loss[-1]))
return d_loss, g_loss, xx, yy
d_loss, g_loss ,xx,yy= train(GAN, G, D, verbose=True)_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_52 (InputLayer) (None, 10) 0
_________________________________________________________________
dense_73 (Dense) (None, 200) 2200
_________________________________________________________________
activation_19 (Activation) (None, 200) 0
_________________________________________________________________
dense_74 (Dense) (None, 30) 6030
=================================================================
Total params: 8,230
Trainable params: 8,230
Non-trainable params: 0
_________________________________________________________________
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_53 (InputLayer) (None, 30) 0
_________________________________________________________________
reshape_19 (Reshape) (None, 30, 1) 0
_________________________________________________________________
conv1d_19 (Conv1D) (None, 26, 30) 180
_________________________________________________________________
dropout_19 (Dropout) (None, 26, 30) 0
_________________________________________________________________
flatten_19 (Flatten) (None, 780) 0
_________________________________________________________________
dense_75 (Dense) (None, 30) 23430
_________________________________________________________________
dense_76 (Dense) (None, 2) 62
=================================================================
Total params: 23,672
Trainable params: 23,672
Non-trainable params: 0
_________________________________________________________________
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_54 (InputLayer) (None, 10) 0
_________________________________________________________________
model_52 (Model) (None, 30) 8230
_________________________________________________________________
model_53 (Model) (None, 2) 23672
=================================================================
Total params: 31,902
Trainable params: 8,230
Non-trainable params: 23,672
_________________________________________________________________
Epoch 1/1
492/492 [==============================] - ETA: 20s - loss: 7.26 - 1s 3ms/step - loss: 4.4403
HBox(children=(IntProgress(value=0, max=500), HTML(value='')))
The 0 times epoch one class svm Error Rate=1.000000
The 1 times epoch one class svm Error Rate=1.000000
The 2 times epoch one class svm Error Rate=1.000000
The 3 times epoch one class svm Error Rate=1.000000
The 4 times epoch one class svm Error Rate=1.000000
The 5 times epoch one class svm Error Rate=1.000000
The 6 times epoch one class svm Error Rate=1.000000
The 7 times epoch one class svm Error Rate=1.000000
The 8 times epoch one class svm Error Rate=1.000000
The 9 times epoch one class svm Error Rate=1.000000
The 10 times epoch one class svm Error Rate=1.000000
The 11 times epoch one class svm Error Rate=1.000000
The 12 times epoch one class svm Error Rate=1.000000
The 13 times epoch one class svm Error Rate=1.000000
The 14 times epoch one class svm Error Rate=1.000000
The 15 times epoch one class svm Error Rate=1.000000
The 16 times epoch one class svm Error Rate=1.000000
The 17 times epoch one class svm Error Rate=1.000000
The 18 times epoch one class svm Error Rate=0.979675
The 19 times epoch one class svm Error Rate=0.987805
The 20 times epoch one class svm Error Rate=0.987805
The 21 times epoch one class svm Error Rate=0.979675
The 22 times epoch one class svm Error Rate=0.943089
The 23 times epoch one class svm Error Rate=0.934959
The 24 times epoch one class svm Error Rate=0.906504
The 25 times epoch one class svm Error Rate=0.947154
The 26 times epoch one class svm Error Rate=0.955285
The 27 times epoch one class svm Error Rate=0.971545
The 28 times epoch one class svm Error Rate=0.979675
The 29 times epoch one class svm Error Rate=0.995935
Epoch #30: Generative Loss: 3.091670274734497, Discriminative Loss: 0.24617470800876617
The 30 times epoch one class svm Error Rate=1.000000
The 31 times epoch one class svm Error Rate=0.975610
The 32 times epoch one class svm Error Rate=0.995935
The 33 times epoch one class svm Error Rate=0.987805
The 34 times epoch one class svm Error Rate=0.987805
The 35 times epoch one class svm Error Rate=0.869919
The 36 times epoch one class svm Error Rate=0.914634
The 37 times epoch one class svm Error Rate=0.971545
The 38 times epoch one class svm Error Rate=0.995935
The 39 times epoch one class svm Error Rate=1.000000
The 40 times epoch one class svm Error Rate=1.000000
The 41 times epoch one class svm Error Rate=1.000000
The 42 times epoch one class svm Error Rate=1.000000
The 43 times epoch one class svm Error Rate=1.000000
The 44 times epoch one class svm Error Rate=1.000000
The 45 times epoch one class svm Error Rate=1.000000
The 46 times epoch one class svm Error Rate=0.991870
The 47 times epoch one class svm Error Rate=0.979675
The 48 times epoch one class svm Error Rate=0.934959
The 49 times epoch one class svm Error Rate=0.898374
The 50 times epoch one class svm Error Rate=0.926829
The 51 times epoch one class svm Error Rate=0.865854
The 52 times epoch one class svm Error Rate=0.853659
The 53 times epoch one class svm Error Rate=0.804878
The 54 times epoch one class svm Error Rate=0.837398
The 55 times epoch one class svm Error Rate=0.796748
The 56 times epoch one class svm Error Rate=0.731707
The 57 times epoch one class svm Error Rate=0.756098
The 58 times epoch one class svm Error Rate=0.654472
The 59 times epoch one class svm Error Rate=0.650407
Epoch #60: Generative Loss: 1.0775084495544434, Discriminative Loss: 0.5125947594642639
The 60 times epoch one class svm Error Rate=0.560976
The 61 times epoch one class svm Error Rate=0.626016
The 62 times epoch one class svm Error Rate=0.532520
The 63 times epoch one class svm Error Rate=0.548780
The 64 times epoch one class svm Error Rate=0.581301
The 65 times epoch one class svm Error Rate=0.268293
The 66 times epoch one class svm Error Rate=0.313008
The 67 times epoch one class svm Error Rate=0.235772
The 68 times epoch one class svm Error Rate=0.256098
The 69 times epoch one class svm Error Rate=0.300813
The 70 times epoch one class svm Error Rate=0.325203
The 71 times epoch one class svm Error Rate=0.280488
The 72 times epoch one class svm Error Rate=0.321138
The 73 times epoch one class svm Error Rate=0.292683
The 74 times epoch one class svm Error Rate=0.304878
The 75 times epoch one class svm Error Rate=0.097561
The 76 times epoch one class svm Error Rate=0.154472
The 77 times epoch one class svm Error Rate=0.138211
The 78 times epoch one class svm Error Rate=0.207317
The 79 times epoch one class svm Error Rate=0.170732
The 80 times epoch one class svm Error Rate=0.150407
The 81 times epoch one class svm Error Rate=0.130081
The 82 times epoch one class svm Error Rate=0.178862
The 83 times epoch one class svm Error Rate=0.121951
The 84 times epoch one class svm Error Rate=0.235772
The 85 times epoch one class svm Error Rate=0.207317
The 86 times epoch one class svm Error Rate=0.191057
The 87 times epoch one class svm Error Rate=0.199187
The 88 times epoch one class svm Error Rate=0.154472
The 89 times epoch one class svm Error Rate=0.162602
Epoch #90: Generative Loss: 7.745787143707275, Discriminative Loss: 0.29893621802330017
The 90 times epoch one class svm Error Rate=0.199187
The 91 times epoch one class svm Error Rate=0.191057
The 92 times epoch one class svm Error Rate=0.223577
The 93 times epoch one class svm Error Rate=0.235772
The 94 times epoch one class svm Error Rate=0.170732
The 95 times epoch one class svm Error Rate=0.211382
The 96 times epoch one class svm Error Rate=0.252033
The 97 times epoch one class svm Error Rate=0.313008
The 98 times epoch one class svm Error Rate=0.292683
The 99 times epoch one class svm Error Rate=0.300813
The 100 times epoch one class svm Error Rate=0.260163
The 101 times epoch one class svm Error Rate=0.247967
The 102 times epoch one class svm Error Rate=0.272358
The 103 times epoch one class svm Error Rate=0.300813
The 104 times epoch one class svm Error Rate=0.345528
The 105 times epoch one class svm Error Rate=0.345528
The 106 times epoch one class svm Error Rate=0.308943
The 107 times epoch one class svm Error Rate=0.386179
The 108 times epoch one class svm Error Rate=0.390244
The 109 times epoch one class svm Error Rate=0.341463
The 110 times epoch one class svm Error Rate=0.390244
The 111 times epoch one class svm Error Rate=0.361789
The 112 times epoch one class svm Error Rate=0.394309
The 113 times epoch one class svm Error Rate=0.451220
The 114 times epoch one class svm Error Rate=0.414634
The 115 times epoch one class svm Error Rate=0.426829
The 116 times epoch one class svm Error Rate=0.414634
The 117 times epoch one class svm Error Rate=0.439024
The 118 times epoch one class svm Error Rate=0.325203
The 119 times epoch one class svm Error Rate=0.296748
Epoch #120: Generative Loss: 13.057535171508789, Discriminative Loss: 0.0875466987490654
The 120 times epoch one class svm Error Rate=0.329268
The 121 times epoch one class svm Error Rate=0.329268
The 122 times epoch one class svm Error Rate=0.357724
The 123 times epoch one class svm Error Rate=0.373984
The 124 times epoch one class svm Error Rate=0.361789
The 125 times epoch one class svm Error Rate=0.341463
The 126 times epoch one class svm Error Rate=0.459350
The 127 times epoch one class svm Error Rate=0.402439
The 128 times epoch one class svm Error Rate=0.402439
The 129 times epoch one class svm Error Rate=0.414634
The 130 times epoch one class svm Error Rate=0.487805
The 131 times epoch one class svm Error Rate=0.382114
The 132 times epoch one class svm Error Rate=0.443089
The 133 times epoch one class svm Error Rate=0.475610
The 134 times epoch one class svm Error Rate=0.500000
The 135 times epoch one class svm Error Rate=0.430894
The 136 times epoch one class svm Error Rate=0.491870
The 137 times epoch one class svm Error Rate=0.479675
The 138 times epoch one class svm Error Rate=0.410569
The 139 times epoch one class svm Error Rate=0.439024
The 140 times epoch one class svm Error Rate=0.439024
The 141 times epoch one class svm Error Rate=0.341463
The 142 times epoch one class svm Error Rate=0.373984
The 143 times epoch one class svm Error Rate=0.422764
The 144 times epoch one class svm Error Rate=0.394309
The 145 times epoch one class svm Error Rate=0.414634
The 146 times epoch one class svm Error Rate=0.398374
The 147 times epoch one class svm Error Rate=0.247967
The 148 times epoch one class svm Error Rate=0.243902
The 149 times epoch one class svm Error Rate=0.256098
Epoch #150: Generative Loss: 13.754234313964844, Discriminative Loss: 0.041622038930654526
The 150 times epoch one class svm Error Rate=0.256098
The 151 times epoch one class svm Error Rate=0.247967
The 152 times epoch one class svm Error Rate=0.239837
The 153 times epoch one class svm Error Rate=0.284553
The 154 times epoch one class svm Error Rate=0.215447
The 155 times epoch one class svm Error Rate=0.304878
The 156 times epoch one class svm Error Rate=0.313008
The 157 times epoch one class svm Error Rate=0.276423
The 158 times epoch one class svm Error Rate=0.243902
The 159 times epoch one class svm Error Rate=0.292683
The 160 times epoch one class svm Error Rate=0.349593
The 161 times epoch one class svm Error Rate=0.268293
The 162 times epoch one class svm Error Rate=0.280488
The 163 times epoch one class svm Error Rate=0.268293
The 164 times epoch one class svm Error Rate=0.300813
The 165 times epoch one class svm Error Rate=0.296748
The 166 times epoch one class svm Error Rate=0.333333
The 167 times epoch one class svm Error Rate=0.296748
The 168 times epoch one class svm Error Rate=0.304878
The 169 times epoch one class svm Error Rate=0.313008
The 170 times epoch one class svm Error Rate=0.337398
The 171 times epoch one class svm Error Rate=0.369919
The 172 times epoch one class svm Error Rate=0.292683
The 173 times epoch one class svm Error Rate=0.361789
The 174 times epoch one class svm Error Rate=0.313008
The 175 times epoch one class svm Error Rate=0.410569
The 176 times epoch one class svm Error Rate=0.378049
The 177 times epoch one class svm Error Rate=0.414634
The 178 times epoch one class svm Error Rate=0.378049
The 179 times epoch one class svm Error Rate=0.382114
Epoch #180: Generative Loss: 15.43078899383545, Discriminative Loss: 0.0465940460562706
The 180 times epoch one class svm Error Rate=0.373984
The 181 times epoch one class svm Error Rate=0.390244
The 182 times epoch one class svm Error Rate=0.418699
The 183 times epoch one class svm Error Rate=0.386179
The 184 times epoch one class svm Error Rate=0.341463
The 185 times epoch one class svm Error Rate=0.256098
The 186 times epoch one class svm Error Rate=0.231707
The 187 times epoch one class svm Error Rate=0.203252
The 188 times epoch one class svm Error Rate=0.178862
The 189 times epoch one class svm Error Rate=0.166667
The 190 times epoch one class svm Error Rate=0.158537
The 191 times epoch one class svm Error Rate=0.134146
The 192 times epoch one class svm Error Rate=0.134146
The 193 times epoch one class svm Error Rate=0.117886
The 194 times epoch one class svm Error Rate=0.077236
The 195 times epoch one class svm Error Rate=0.085366
The 196 times epoch one class svm Error Rate=0.101626
The 197 times epoch one class svm Error Rate=0.081301
The 198 times epoch one class svm Error Rate=0.089431
The 199 times epoch one class svm Error Rate=0.126016
The 200 times epoch one class svm Error Rate=0.101626
The 201 times epoch one class svm Error Rate=0.069106
The 202 times epoch one class svm Error Rate=0.093496
The 203 times epoch one class svm Error Rate=0.060976
The 204 times epoch one class svm Error Rate=0.093496
The 205 times epoch one class svm Error Rate=0.077236
The 206 times epoch one class svm Error Rate=0.048780
The 207 times epoch one class svm Error Rate=0.052846
The 208 times epoch one class svm Error Rate=0.052846
The 209 times epoch one class svm Error Rate=0.044715
Epoch #210: Generative Loss: 9.725569725036621, Discriminative Loss: 0.9999033808708191
The 210 times epoch one class svm Error Rate=0.016260
The 211 times epoch one class svm Error Rate=0.040650
The 212 times epoch one class svm Error Rate=0.032520
The 213 times epoch one class svm Error Rate=0.036585
The 214 times epoch one class svm Error Rate=0.028455
The 215 times epoch one class svm Error Rate=0.040650
The 216 times epoch one class svm Error Rate=0.032520
The 217 times epoch one class svm Error Rate=0.032520
The 218 times epoch one class svm Error Rate=0.028455
The 219 times epoch one class svm Error Rate=0.028455
The 220 times epoch one class svm Error Rate=0.008130
The 221 times epoch one class svm Error Rate=0.012195
The 222 times epoch one class svm Error Rate=0.008130
The 223 times epoch one class svm Error Rate=0.000000
The 224 times epoch one class svm Error Rate=0.016260
The 225 times epoch one class svm Error Rate=0.024390
The 226 times epoch one class svm Error Rate=0.016260
The 227 times epoch one class svm Error Rate=0.012195
The 228 times epoch one class svm Error Rate=0.000000
The 229 times epoch one class svm Error Rate=0.020325
The 230 times epoch one class svm Error Rate=0.012195
The 231 times epoch one class svm Error Rate=0.012195
The 232 times epoch one class svm Error Rate=0.000000
The 233 times epoch one class svm Error Rate=0.008130
The 234 times epoch one class svm Error Rate=0.004065
The 235 times epoch one class svm Error Rate=0.012195
The 236 times epoch one class svm Error Rate=0.000000
The 237 times epoch one class svm Error Rate=0.004065
The 238 times epoch one class svm Error Rate=0.000000
The 239 times epoch one class svm Error Rate=0.000000
Epoch #240: Generative Loss: 5.924355983734131, Discriminative Loss: 2.2241828441619873
The 240 times epoch one class svm Error Rate=0.000000
The 241 times epoch one class svm Error Rate=0.004065
The 242 times epoch one class svm Error Rate=0.008130
The 243 times epoch one class svm Error Rate=0.004065
The 244 times epoch one class svm Error Rate=0.000000
The 245 times epoch one class svm Error Rate=0.000000
The 246 times epoch one class svm Error Rate=0.000000
The 247 times epoch one class svm Error Rate=0.000000
The 248 times epoch one class svm Error Rate=0.000000
The 249 times epoch one class svm Error Rate=0.004065
The 250 times epoch one class svm Error Rate=0.000000
The 251 times epoch one class svm Error Rate=0.000000
The 252 times epoch one class svm Error Rate=0.000000
The 253 times epoch one class svm Error Rate=0.000000
The 254 times epoch one class svm Error Rate=0.000000
The 255 times epoch one class svm Error Rate=0.000000
The 256 times epoch one class svm Error Rate=0.000000
The 257 times epoch one class svm Error Rate=0.000000
The 258 times epoch one class svm Error Rate=0.000000
The 259 times epoch one class svm Error Rate=0.000000
The 260 times epoch one class svm Error Rate=0.000000
The 261 times epoch one class svm Error Rate=0.004065
The 262 times epoch one class svm Error Rate=0.000000
The 263 times epoch one class svm Error Rate=0.000000
The 264 times epoch one class svm Error Rate=0.000000
The 265 times epoch one class svm Error Rate=0.000000
The 266 times epoch one class svm Error Rate=0.000000
The 267 times epoch one class svm Error Rate=0.000000
The 268 times epoch one class svm Error Rate=0.000000
The 269 times epoch one class svm Error Rate=0.000000
Epoch #270: Generative Loss: 9.801362037658691, Discriminative Loss: 2.071434259414673
The 270 times epoch one class svm Error Rate=0.000000
The 271 times epoch one class svm Error Rate=0.000000
The 272 times epoch one class svm Error Rate=0.000000
The 273 times epoch one class svm Error Rate=0.000000
The 274 times epoch one class svm Error Rate=0.000000
The 275 times epoch one class svm Error Rate=0.000000
The 276 times epoch one class svm Error Rate=0.000000
The 277 times epoch one class svm Error Rate=0.000000
The 278 times epoch one class svm Error Rate=0.000000
The 279 times epoch one class svm Error Rate=0.000000
The 280 times epoch one class svm Error Rate=0.000000
The 281 times epoch one class svm Error Rate=0.000000
The 282 times epoch one class svm Error Rate=0.000000
The 283 times epoch one class svm Error Rate=0.000000
The 284 times epoch one class svm Error Rate=0.000000
The 285 times epoch one class svm Error Rate=0.000000
The 286 times epoch one class svm Error Rate=0.000000
The 287 times epoch one class svm Error Rate=0.000000
The 288 times epoch one class svm Error Rate=0.000000
The 289 times epoch one class svm Error Rate=0.000000
The 290 times epoch one class svm Error Rate=0.000000
The 291 times epoch one class svm Error Rate=0.000000
The 292 times epoch one class svm Error Rate=0.000000
The 293 times epoch one class svm Error Rate=0.000000
The 294 times epoch one class svm Error Rate=0.000000
The 295 times epoch one class svm Error Rate=0.000000
The 296 times epoch one class svm Error Rate=0.000000
The 297 times epoch one class svm Error Rate=0.000000
The 298 times epoch one class svm Error Rate=0.000000
The 299 times epoch one class svm Error Rate=0.000000

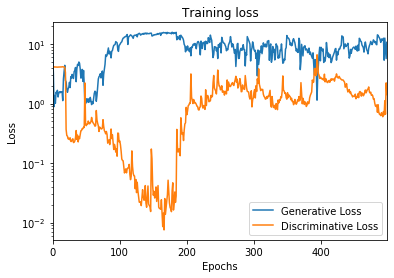

Epoch #300: Generative Loss: 9.602219581604004, Discriminative Loss: 1.2407653331756592
The 300 times epoch one class svm Error Rate=0.000000
The 301 times epoch one class svm Error Rate=0.000000
The 302 times epoch one class svm Error Rate=0.000000
The 303 times epoch one class svm Error Rate=0.000000
The 304 times epoch one class svm Error Rate=0.000000
The 305 times epoch one class svm Error Rate=0.000000
The 306 times epoch one class svm Error Rate=0.000000
The 307 times epoch one class svm Error Rate=0.000000
The 308 times epoch one class svm Error Rate=0.000000
The 309 times epoch one class svm Error Rate=0.000000
The 310 times epoch one class svm Error Rate=0.000000
The 311 times epoch one class svm Error Rate=0.000000
The 312 times epoch one class svm Error Rate=0.000000
The 313 times epoch one class svm Error Rate=0.000000
The 314 times epoch one class svm Error Rate=0.000000
The 315 times epoch one class svm Error Rate=0.000000
The 316 times epoch one class svm Error Rate=0.000000
The 317 times epoch one class svm Error Rate=0.000000
The 318 times epoch one class svm Error Rate=0.000000
The 319 times epoch one class svm Error Rate=0.000000
The 320 times epoch one class svm Error Rate=0.000000
The 321 times epoch one class svm Error Rate=0.000000
The 322 times epoch one class svm Error Rate=0.000000
The 323 times epoch one class svm Error Rate=0.000000
The 324 times epoch one class svm Error Rate=0.000000
The 325 times epoch one class svm Error Rate=0.000000
The 326 times epoch one class svm Error Rate=0.000000
The 327 times epoch one class svm Error Rate=0.000000
The 328 times epoch one class svm Error Rate=0.000000
The 329 times epoch one class svm Error Rate=0.000000
Epoch #330: Generative Loss: 7.252541542053223, Discriminative Loss: 0.8582528829574585
The 330 times epoch one class svm Error Rate=0.000000
The 331 times epoch one class svm Error Rate=0.000000
The 332 times epoch one class svm Error Rate=0.000000
The 333 times epoch one class svm Error Rate=0.000000
The 334 times epoch one class svm Error Rate=0.000000
The 335 times epoch one class svm Error Rate=0.000000
The 336 times epoch one class svm Error Rate=0.000000
The 337 times epoch one class svm Error Rate=0.000000
The 338 times epoch one class svm Error Rate=0.000000
The 339 times epoch one class svm Error Rate=0.000000
The 340 times epoch one class svm Error Rate=0.000000
The 341 times epoch one class svm Error Rate=0.000000
The 342 times epoch one class svm Error Rate=0.000000
The 343 times epoch one class svm Error Rate=0.000000
The 344 times epoch one class svm Error Rate=0.000000
The 345 times epoch one class svm Error Rate=0.000000
The 346 times epoch one class svm Error Rate=0.000000
The 347 times epoch one class svm Error Rate=0.000000
The 348 times epoch one class svm Error Rate=0.000000
The 349 times epoch one class svm Error Rate=0.000000
The 350 times epoch one class svm Error Rate=0.000000
The 351 times epoch one class svm Error Rate=0.000000
The 352 times epoch one class svm Error Rate=0.000000
The 353 times epoch one class svm Error Rate=0.000000
The 354 times epoch one class svm Error Rate=0.000000
The 355 times epoch one class svm Error Rate=0.000000
The 356 times epoch one class svm Error Rate=0.000000
The 357 times epoch one class svm Error Rate=0.000000
The 358 times epoch one class svm Error Rate=0.000000
The 359 times epoch one class svm Error Rate=0.000000
Epoch #360: Generative Loss: 12.310481071472168, Discriminative Loss: 0.957058310508728
The 360 times epoch one class svm Error Rate=0.000000
The 361 times epoch one class svm Error Rate=0.000000
The 362 times epoch one class svm Error Rate=0.000000
The 363 times epoch one class svm Error Rate=0.000000
The 364 times epoch one class svm Error Rate=0.000000
The 365 times epoch one class svm Error Rate=0.000000
The 366 times epoch one class svm Error Rate=0.000000
The 367 times epoch one class svm Error Rate=0.000000
The 368 times epoch one class svm Error Rate=0.000000
The 369 times epoch one class svm Error Rate=0.000000
The 370 times epoch one class svm Error Rate=0.000000
The 371 times epoch one class svm Error Rate=0.000000
The 372 times epoch one class svm Error Rate=0.000000
The 373 times epoch one class svm Error Rate=0.000000
The 374 times epoch one class svm Error Rate=0.000000
The 375 times epoch one class svm Error Rate=0.000000
The 376 times epoch one class svm Error Rate=0.000000
The 377 times epoch one class svm Error Rate=0.000000
The 378 times epoch one class svm Error Rate=0.000000
The 379 times epoch one class svm Error Rate=0.000000
The 380 times epoch one class svm Error Rate=0.000000
The 381 times epoch one class svm Error Rate=0.000000
The 382 times epoch one class svm Error Rate=0.000000
The 383 times epoch one class svm Error Rate=0.000000
The 384 times epoch one class svm Error Rate=0.000000
The 385 times epoch one class svm Error Rate=0.000000
The 386 times epoch one class svm Error Rate=0.000000
The 387 times epoch one class svm Error Rate=0.000000
The 388 times epoch one class svm Error Rate=0.000000
The 389 times epoch one class svm Error Rate=0.000000
Epoch #390: Generative Loss: 4.789226531982422, Discriminative Loss: 2.3003053665161133
The 390 times epoch one class svm Error Rate=0.000000
The 391 times epoch one class svm Error Rate=0.000000
The 392 times epoch one class svm Error Rate=0.000000
The 393 times epoch one class svm Error Rate=0.000000
The 394 times epoch one class svm Error Rate=0.000000
The 395 times epoch one class svm Error Rate=0.000000
The 396 times epoch one class svm Error Rate=0.000000
The 397 times epoch one class svm Error Rate=0.000000
The 398 times epoch one class svm Error Rate=0.000000
The 399 times epoch one class svm Error Rate=0.000000
The 400 times epoch one class svm Error Rate=0.000000
The 401 times epoch one class svm Error Rate=0.000000
The 402 times epoch one class svm Error Rate=0.000000
The 403 times epoch one class svm Error Rate=0.000000
The 404 times epoch one class svm Error Rate=0.000000
The 405 times epoch one class svm Error Rate=0.000000
The 406 times epoch one class svm Error Rate=0.000000
The 407 times epoch one class svm Error Rate=0.000000
The 408 times epoch one class svm Error Rate=0.000000
The 409 times epoch one class svm Error Rate=0.000000
The 410 times epoch one class svm Error Rate=0.000000
The 411 times epoch one class svm Error Rate=0.000000
The 412 times epoch one class svm Error Rate=0.000000
The 413 times epoch one class svm Error Rate=0.000000
The 414 times epoch one class svm Error Rate=0.000000
The 415 times epoch one class svm Error Rate=0.000000
The 416 times epoch one class svm Error Rate=0.000000
The 417 times epoch one class svm Error Rate=0.000000
The 418 times epoch one class svm Error Rate=0.000000
The 419 times epoch one class svm Error Rate=0.000000
Epoch #420: Generative Loss: 6.851884841918945, Discriminative Loss: 2.5857698917388916
The 420 times epoch one class svm Error Rate=0.000000
The 421 times epoch one class svm Error Rate=0.000000
The 422 times epoch one class svm Error Rate=0.000000
The 423 times epoch one class svm Error Rate=0.000000
The 424 times epoch one class svm Error Rate=0.000000
The 425 times epoch one class svm Error Rate=0.000000
The 426 times epoch one class svm Error Rate=0.000000
The 427 times epoch one class svm Error Rate=0.000000
The 428 times epoch one class svm Error Rate=0.000000
The 429 times epoch one class svm Error Rate=0.000000
The 430 times epoch one class svm Error Rate=0.000000
The 431 times epoch one class svm Error Rate=0.000000
The 432 times epoch one class svm Error Rate=0.000000
The 433 times epoch one class svm Error Rate=0.000000
The 434 times epoch one class svm Error Rate=0.000000
The 435 times epoch one class svm Error Rate=0.000000
The 436 times epoch one class svm Error Rate=0.000000
The 437 times epoch one class svm Error Rate=0.000000
The 438 times epoch one class svm Error Rate=0.000000
The 439 times epoch one class svm Error Rate=0.000000
The 440 times epoch one class svm Error Rate=0.000000
The 441 times epoch one class svm Error Rate=0.000000
The 442 times epoch one class svm Error Rate=0.000000
The 443 times epoch one class svm Error Rate=0.000000
The 444 times epoch one class svm Error Rate=0.000000
The 445 times epoch one class svm Error Rate=0.000000
The 446 times epoch one class svm Error Rate=0.000000
The 447 times epoch one class svm Error Rate=0.000000
The 448 times epoch one class svm Error Rate=0.000000
The 449 times epoch one class svm Error Rate=0.000000
Epoch #450: Generative Loss: 8.908618927001953, Discriminative Loss: 1.3398958444595337
The 450 times epoch one class svm Error Rate=0.000000
The 451 times epoch one class svm Error Rate=0.000000
The 452 times epoch one class svm Error Rate=0.000000
The 453 times epoch one class svm Error Rate=0.000000
The 454 times epoch one class svm Error Rate=0.000000
The 455 times epoch one class svm Error Rate=0.000000
The 456 times epoch one class svm Error Rate=0.000000
The 457 times epoch one class svm Error Rate=0.000000
The 458 times epoch one class svm Error Rate=0.000000
The 459 times epoch one class svm Error Rate=0.000000
The 460 times epoch one class svm Error Rate=0.000000
The 461 times epoch one class svm Error Rate=0.000000
The 462 times epoch one class svm Error Rate=0.000000
The 463 times epoch one class svm Error Rate=0.000000
The 464 times epoch one class svm Error Rate=0.000000
The 465 times epoch one class svm Error Rate=0.000000
The 466 times epoch one class svm Error Rate=0.000000
The 467 times epoch one class svm Error Rate=0.000000
The 468 times epoch one class svm Error Rate=0.000000
The 469 times epoch one class svm Error Rate=0.000000
The 470 times epoch one class svm Error Rate=0.000000
The 471 times epoch one class svm Error Rate=0.000000
The 472 times epoch one class svm Error Rate=0.000000
The 473 times epoch one class svm Error Rate=0.000000
The 474 times epoch one class svm Error Rate=0.000000
The 475 times epoch one class svm Error Rate=0.000000
The 476 times epoch one class svm Error Rate=0.000000
The 477 times epoch one class svm Error Rate=0.000000
The 478 times epoch one class svm Error Rate=0.000000
The 479 times epoch one class svm Error Rate=0.000000
Epoch #480: Generative Loss: 11.32304859161377, Discriminative Loss: 1.2117078304290771
The 480 times epoch one class svm Error Rate=0.000000
The 481 times epoch one class svm Error Rate=0.000000
The 482 times epoch one class svm Error Rate=0.000000
The 483 times epoch one class svm Error Rate=0.000000
The 484 times epoch one class svm Error Rate=0.000000
The 485 times epoch one class svm Error Rate=0.000000
The 486 times epoch one class svm Error Rate=0.000000
The 487 times epoch one class svm Error Rate=0.000000
The 488 times epoch one class svm Error Rate=0.000000
The 489 times epoch one class svm Error Rate=0.000000
The 490 times epoch one class svm Error Rate=0.000000
The 491 times epoch one class svm Error Rate=0.000000
The 492 times epoch one class svm Error Rate=0.000000
The 493 times epoch one class svm Error Rate=0.000000
The 494 times epoch one class svm Error Rate=0.000000
The 495 times epoch one class svm Error Rate=0.000000
The 496 times epoch one class svm Error Rate=0.000000
The 497 times epoch one class svm Error Rate=0.000000
The 498 times epoch one class svm Error Rate=0.000000
The 499 times epoch one class svm Error Rate=0.000000迭代500次之後error rate 基本為0，確定其收斂方向即error rate。
繪製loss function走勢
ax = pd.DataFrame(
{
'Generative Loss': g_loss,
'Discriminative Loss': d_loss,
}
).plot(title='Training loss', logy=True)
ax.set_xlabel("Epochs")
ax.set_ylabel("Loss")Text(0, 0.5, 'Loss')
可以發現不再像之前兩個彼此一上一下的情況，可以有辦法透過超參數的調整讓兩者皆下降。
Generate Available Data
#data generate
re = 576#number of data generated
num1 = int(len(xx)/2)
num2 = int(len(xx)+1)
new_data = pd.DataFrame(ss.inverse_transform(xx))
for i in range(re):
d_loss, g_loss ,x1,yy= train(GAN, G, D, epochs=1,verbose=True)
new_data1 = pd.DataFrame(ss.inverse_transform(x1[num1:num2]))
new_data = pd.concat([new_data,new_data1], axis=0)
new_data['Class'] = 1new_data.columns = train_nor.columns
new_data_train = pd.concat([train_nor,new_data],axis = 0)建構分類器
from sklearn.model_selection import train_test_split
from sklearn import ensemble
from sklearn import metrics
train_X = new_data_train.iloc[:,0:30]
test_X = data_test.iloc[:,0:30]
train_y = new_data_train["Class"]
test_y = data_test["Class"]
forest = ensemble.RandomForestClassifier(n_estimators = 100)
forest_fit = forest.fit(train_X, train_y)
test_y_predicted = forest.predict(test_X)
accuracy_rf = metrics.accuracy_score(test_y, test_y_predicted)
print(accuracy_rf)
test_auc = metrics.roc_auc_score(test_y, test_y_predicted)
print (test_auc)0.999726131288447
0.9389927353247279這個結果比之前的各種方法都來的更好，因此可以說WGAN有機會生成比其他方法好的樣本，但是方向卻與error rate有些許不一致。
Result
result <- data.frame()
result = data.frame(c(0.9994803480263759,0.8678545237199384))
result$Under_Sampling = data.frame(c(0.9995084373222475,0.8901876266312907))
result$SMOTE = data.frame(c(0.9994663033784401,0.9023405417267101))
result$ADASYN = data.frame(c(0.9993890578147933,0.8982438459344533))
result$GAN = data.frame(c(0.999557596696722,0.9003572630796582))
result$WGAN = data.frame(c(0.999726131288447,0.9389927353247279))
colnames(result) <- c("Non Sampling","Under Sampling","SMOTE","ADASYN","GAN","WGAN")
rownames(result) <- c("ACC","AUC")
result = data.frame(t(result))
result## ACC AUC
## Non Sampling 0.9994803 0.8678545
## Under Sampling 0.9995084 0.8901876
## SMOTE 0.9994663 0.9023405
## ADASYN 0.9993891 0.8982438
## GAN 0.9995576 0.9003573
## WGAN 0.9997261 0.9389927library(ggplot2)

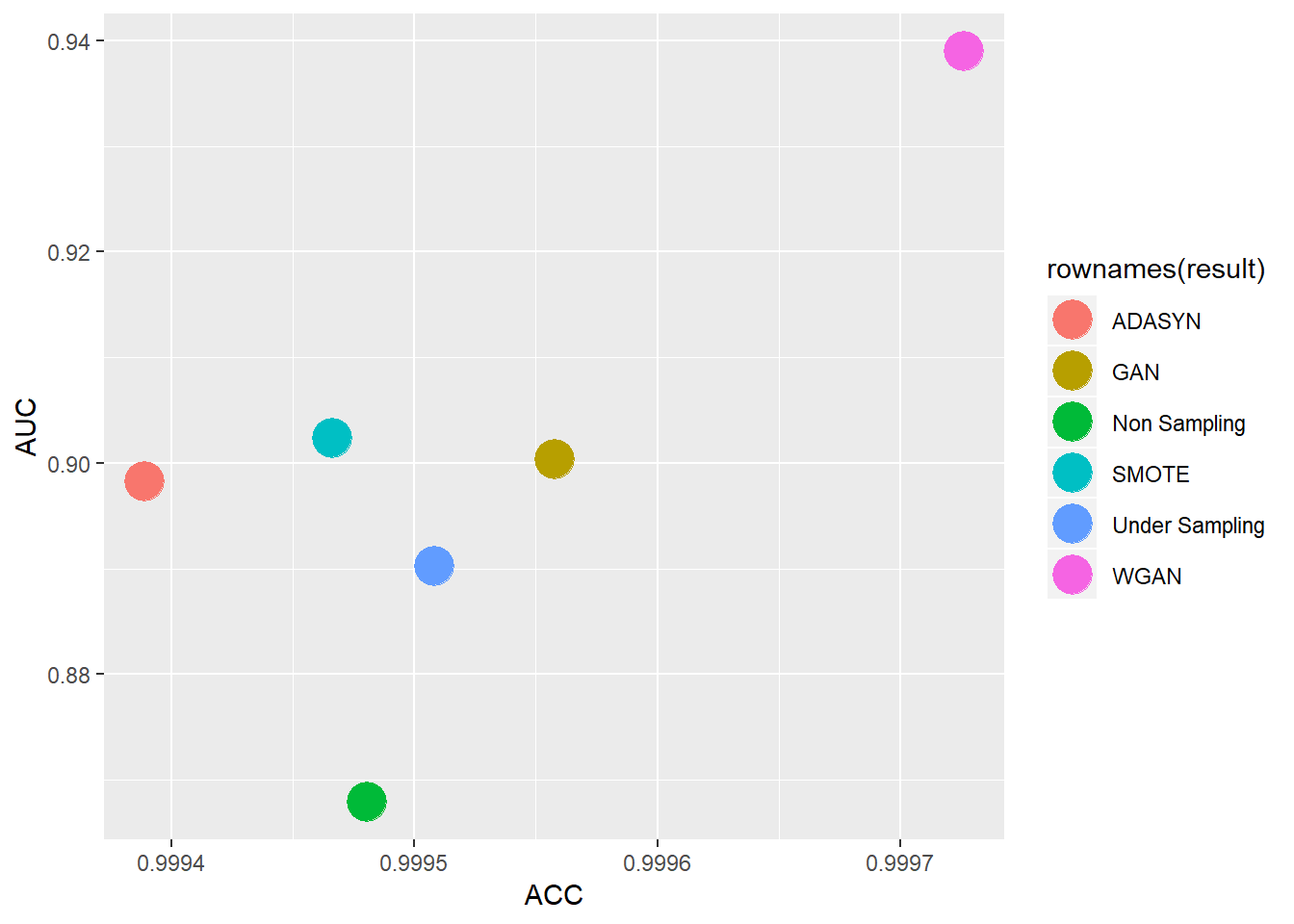

ggplot(data = result)+
geom_point(mapping = aes(x = ACC,y = AUC,color = rownames(result)),size=7)
這是將這次結果與之前的結果相結合，可以看出不論是在AUC 與 ACC上，WGAN確實表現都來的比其他的好。
